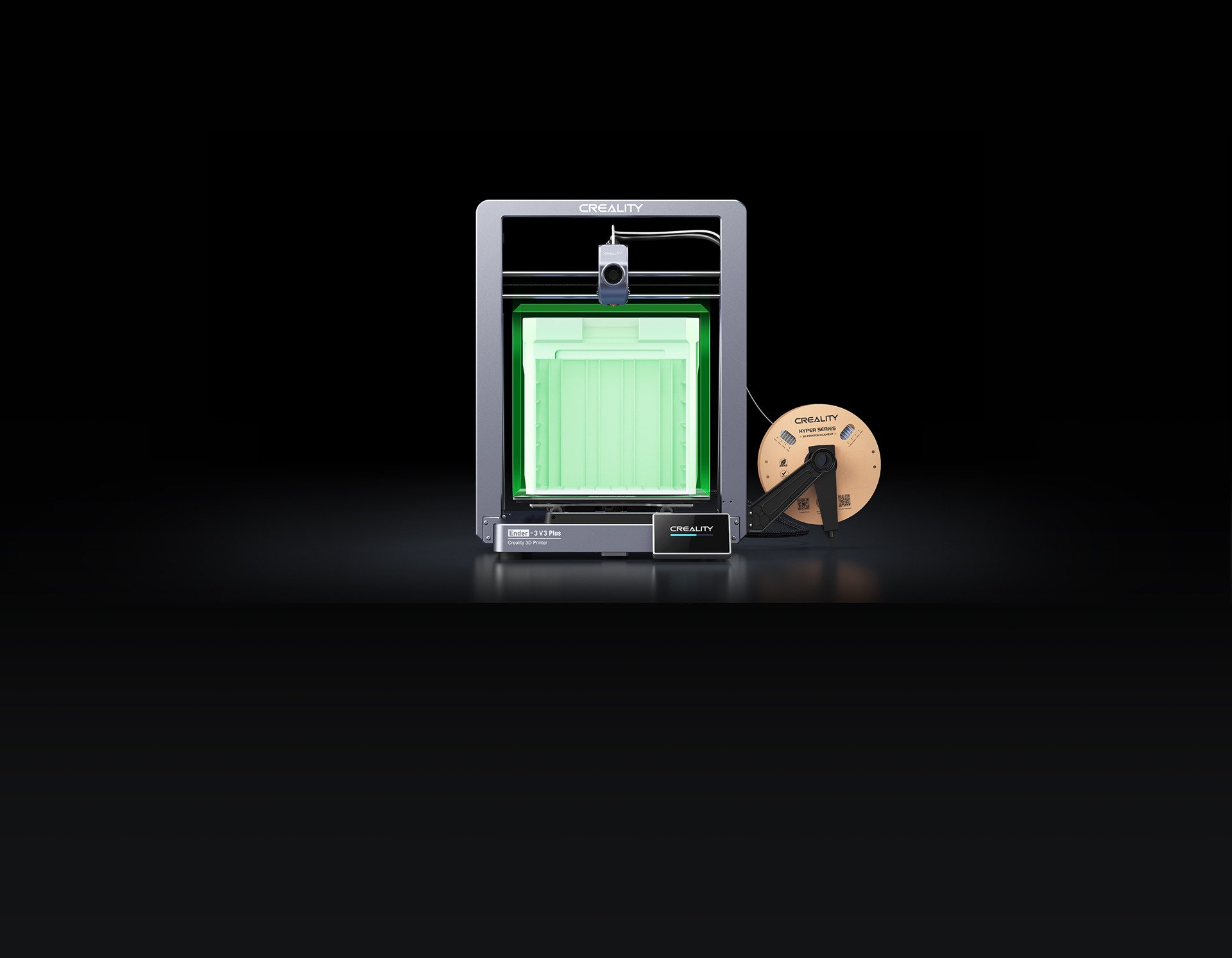

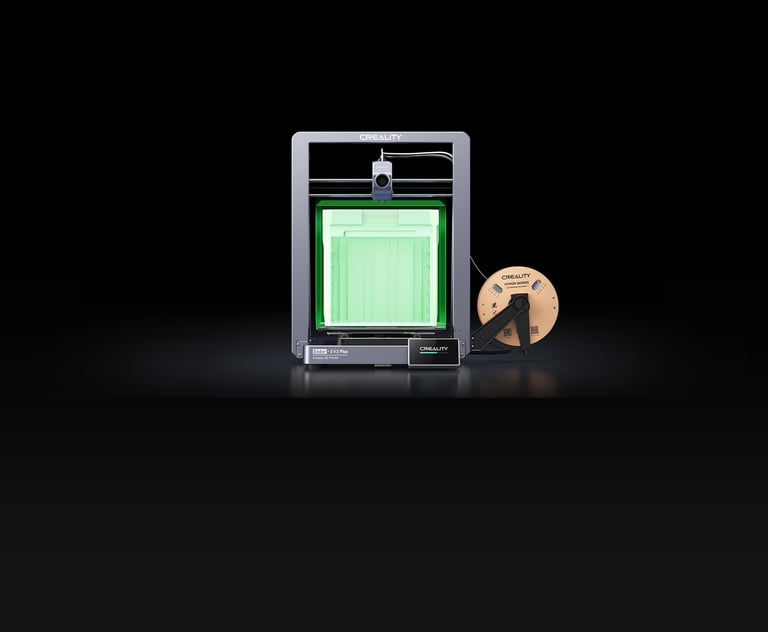

Bigger Print Size, Big Pluses

Ender-3 V3 Plus offers a decent 300*300*330mm build volume.
It gives you the valuable capacity to achieve bigger ambitions.

New Design, More Space-saving

Ender-3 V3 Plus is restructured from scratch.
It occupies significantly less space than 3D printers of a similar build volume.
An easy fit on your desk or workbench.

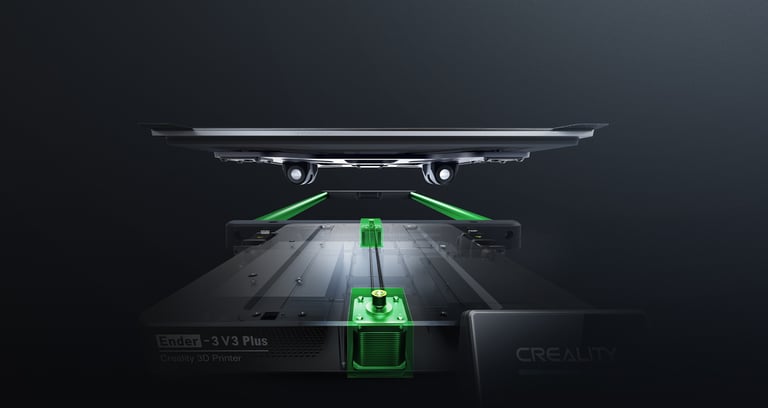

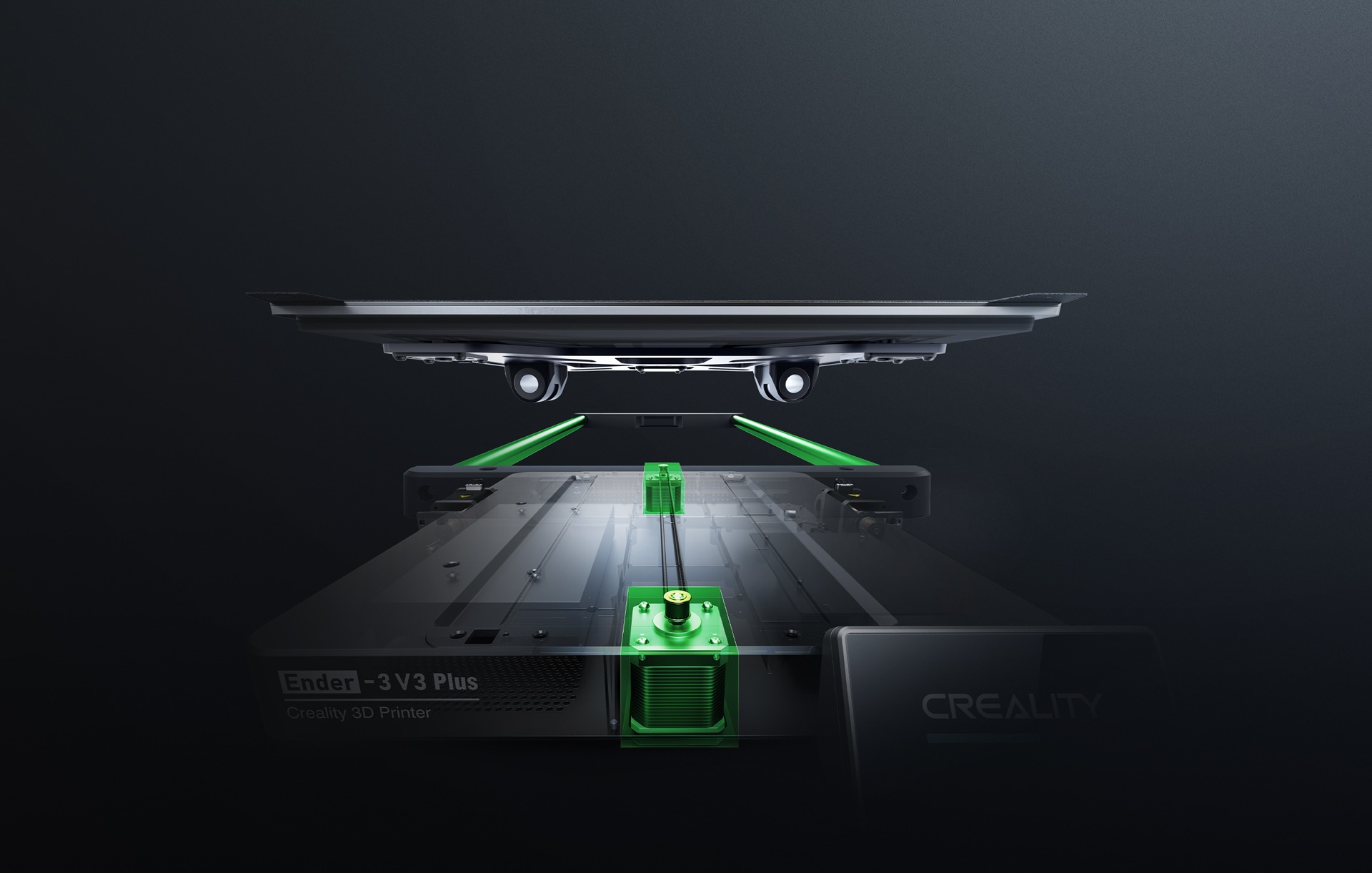

Two Powerful Motors on Y-axis

The print bed is moved back and forth swiftly
by two 500mN.m motors along two beefy linear rods.
No sweat to carry large and hefty 3D prints.

Two Support Rods Stabilizing the Z-axis

Two support rods are added to connect the base and the top of the gantry
and form a rigid triangle that reduces Z-axis shaking.
The print quality is ensured throughout the height of the print volume.

Plus Efficiency With Excellent Speed

600mm/s*
Max Speed

20000mm/s²*
Max Acceleration

Ender-3 V3 Plus

Print Technology: Fused Deposition Modeling (FDM)
Build Volume: 300 x 300 x 330 mm
Machine Dimensions: 445 x 410 x 577 mm
Extruder Type: Direct Drive Extruder
Nozzle Diameter: 0.4 mm (Quick-Swap Unicorn copper nozzle with steel tip and integrated titanium alloy heatbreak)
Max Extruder Temperature: 300°CPlatform Temperature: Up to 100°C
Max Print Speed: 600 mm/s
Acceleration: Up to 20,000 mm/s²
Layer Resolution: 0.1 to 0.35 mm
Build Plate: Flexible PEI spring steel plate
Leveling System: Automatic bed leveling
Display Screen: 4.3-inch HD color touchscreen (800 x 480 px)
Motherboard: 32-bit
Connectivity: USB drive, Wi-Fi
Input Voltage: 100-240V AC, 50/60Hz
Rated Power: 350W
Firmware: Klipper-base
Filament Compatibility:
Standard Filaments: PLA, ABS, PETG, TPU
Engineering Filaments: PLA-CF, PETG-CF

download brochure
