Building on six years of success with the D600 Pro, the D600 Pro 2 introduces a cutting-edge design and advanced technology for unparalleled performance. With 30 user-driven upgrades, it offers enhanced print volume, faster speeds, superior material compatibility, simplified operation, and 24/7 reliability.

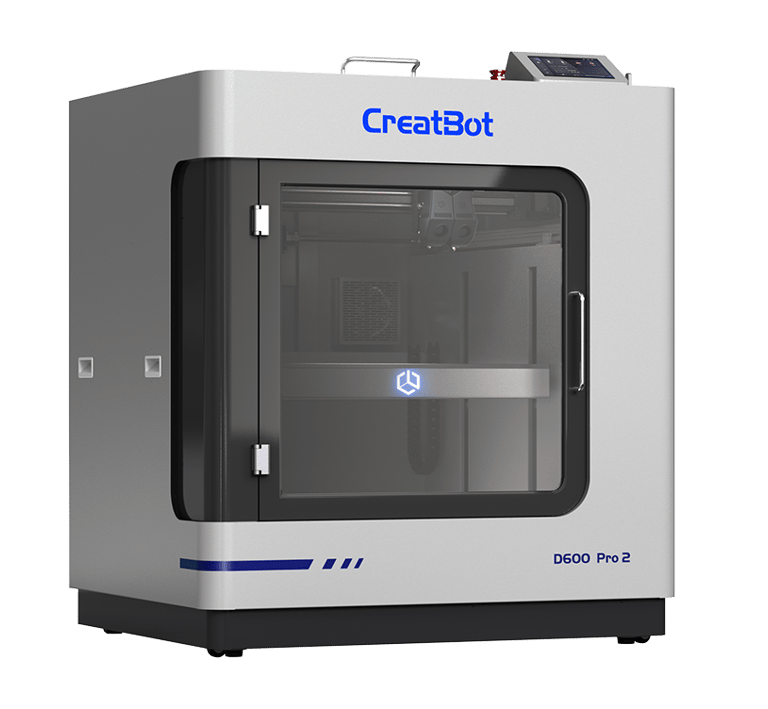

D600 PRO 2
600*600*600mm
420°C+100°C+70°C
High resolution&speed
Removable Magnetic Platform
Reliable 24/7
Fully enclosed
Main Features
Auto-rising Dual Extruders 420 ℃
D600 Pro 2 is equipped with new smart auto-rising dual-extruders kit hot-end temperature up to 420 ℃. It is able to print engineering-grade materials like PLA, ABS, PC, UltraPA, carbon fiber, glass fiber, etc with quick remove support materials.

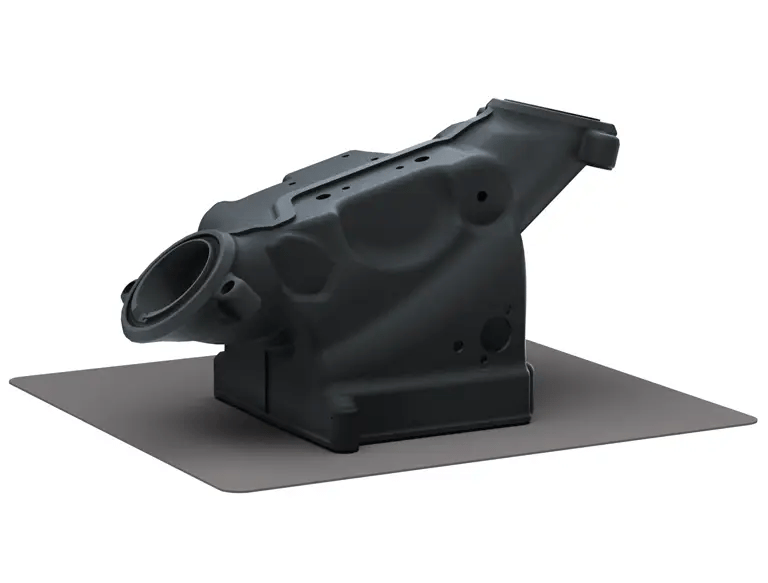

Magnetic suction platform
Exclusive R&D of magnetic platform with large size, easy removable platform, high temperature resistance exceeding 100 °C, long-term use without demagnetization. For oversized models, it is easy to detach them quickly and the bottom of the model is flat. Convenient to all operators.

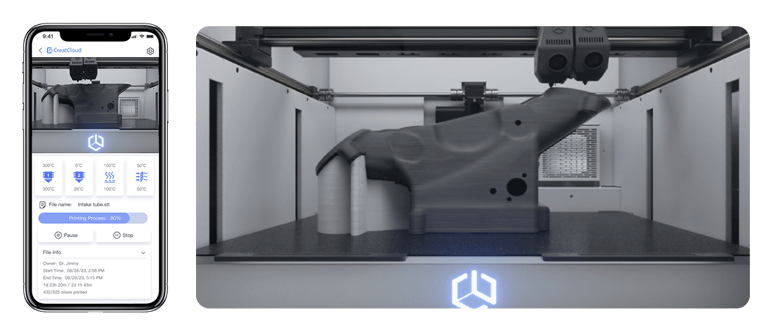

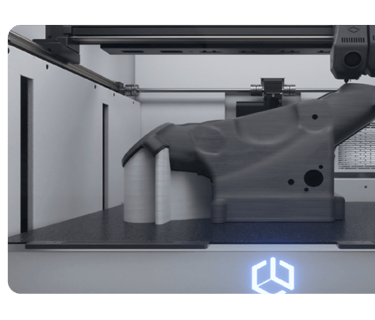

Camera Control Technology
Camera control technology allow customers to control printing process on speed,pause,temp.,etc., with an APP remotely, achieving the best printing quality with shortest time without failure. A very useful feature on large model and long time printing.

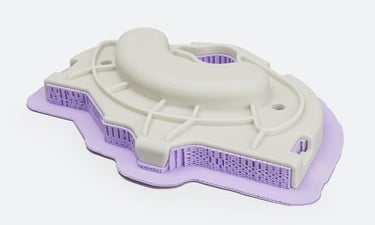

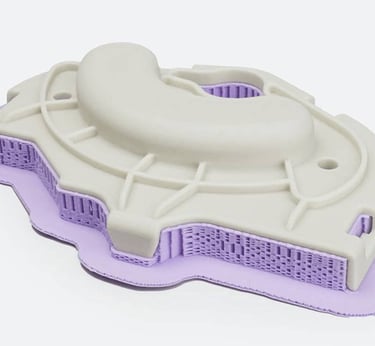

Printing in single and dual-extrusion modes
Technical Specs
PRINTING
Print Technology: FDM Build
Volume: Single
Extrusion: 600*600*600mm
Dual Extrusion: 540*600*600mm
Number of Nozzles: Double
Auto rising extruders: Yes
Min layer height: 0.05mm
Filament Diameter:1.75mm
Filament Compatibility: PLA, ABS, Carbon, Nylon, Ultra-
PA, UltraPA- CF, PET-CF, PC, TPU, ASA, PETG, etc.
Nozzle Diameter:0.6mm (0.3, 0.4, 0.6, 0.8,1.0mm)
Print File Type: GCODE
TEMPERATURE
Max. Nozzle Temperature:420°
Max. Bed Temperature:100°C
Max. Chamber Temperature:70°C
Filaments Drying Temperature: 0-70°C (Timed)
SPEED
Best Printing speed:80mm/s
Max. Printing speed:150mm/s
ELECTRICAL
Power Requirements: 240V, 50-60Hz
Max. Power: 5500W
Screen: Connectivity: 7" Touch Screen USB/USB disk / WIF
SPECIAL FUNCTION
Outage Restored: Save data when power is off
Filament Detection: Pause printing when filament clock
or run out
Automatic leveling bed: Yes
Automatic Shut-down: Turn off the power when printing
is complete
Magic box Technology: Perfect Z direction texture
Camera Control: Monitoring + Control
Emergency stop switch: Yes
SOFTWARE
Software Bundle: CreatWare, Simplify 3D, Cura,Slice 3r
Supported File Types: STL, OBJ, AMF
Operating Systems: Windows (7,8,10) Mac OS
SIZE & WEIGHT
Product Dimensions & Weight: 1080*920*1245mm 200kg
Packaging Dimensions & Weight: 1150*1000*1410mm
245kg
HARDWARE
X/Y motors: high-precision Servo motors
X/Y Axis: high-precision Linear slides
Air filter: HEPA+Carbon
Print bed: Removable magnetic platform(base on high-precision aviation aluminum plate)
Print surface: PEI sheet+ PEI coating
Mainboard: 32 bits
X/Y min&max: Photoelectric switch
Explore 3D Printer Product
Find Your Perfect Match
Discover Detailed Specifications

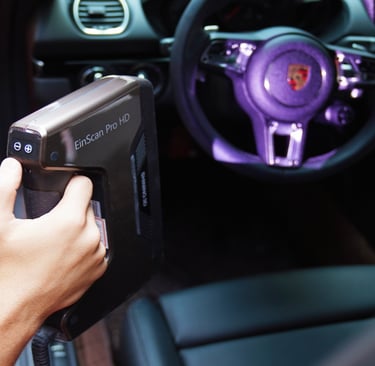

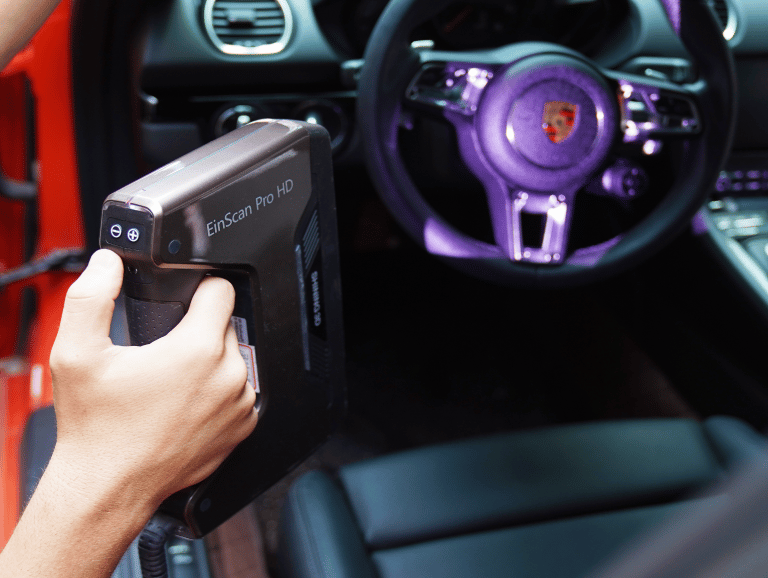

Explore 3D Scanner Product
