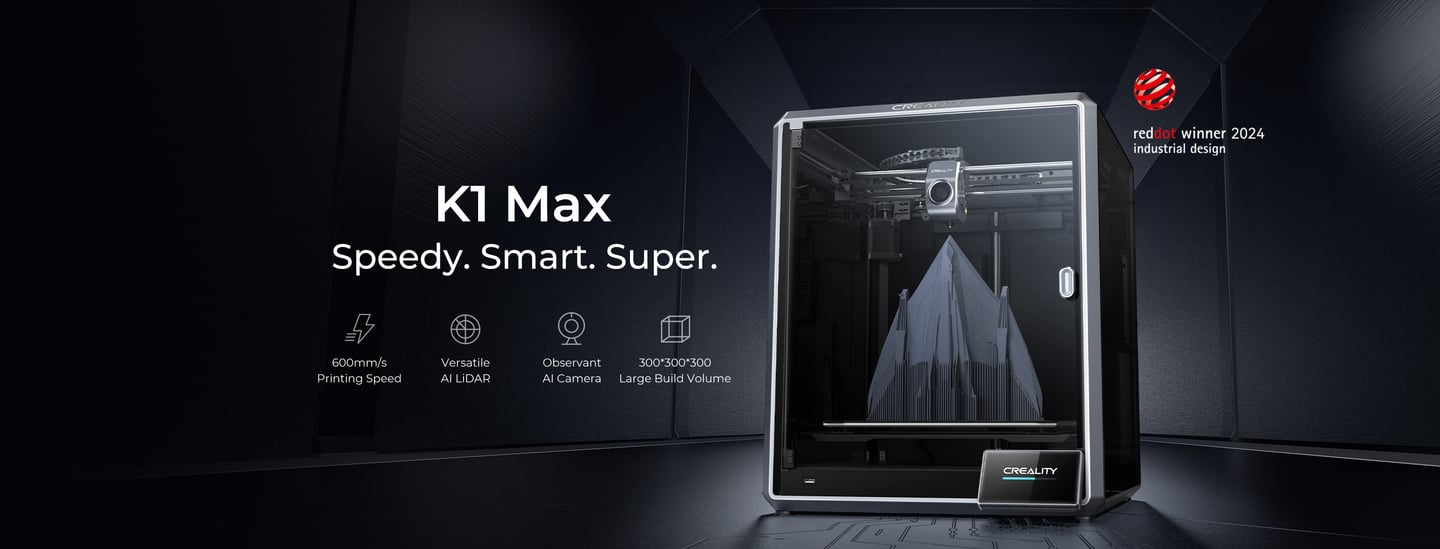

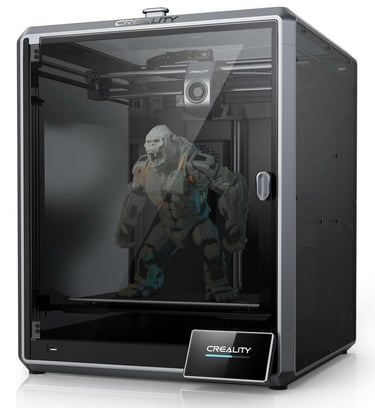

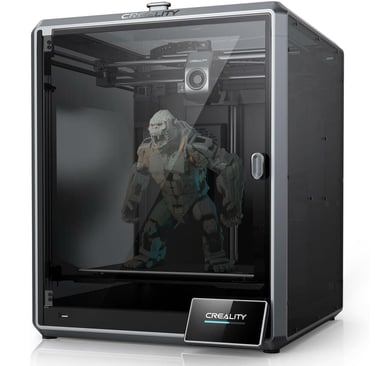

CREALITY K1 MAX

K1 Max, with its stunning speed, will kindle people's zeal for 3D printing. A fast speed cuts printing time and raises efficiency. It uses less energy for the same output, thus more eco-friendly. Most importantly, it focuses on the pure joy of creation.

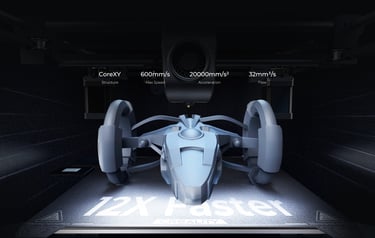

Super Power of Speed

Max. 32mm³/s Flow

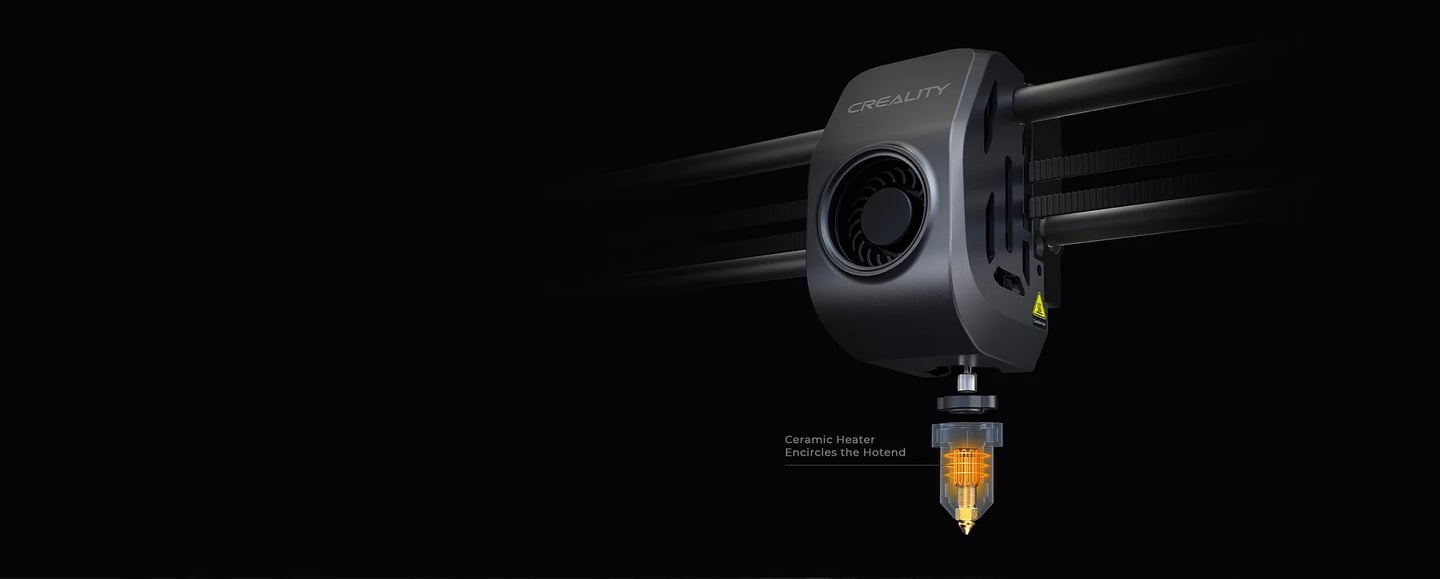

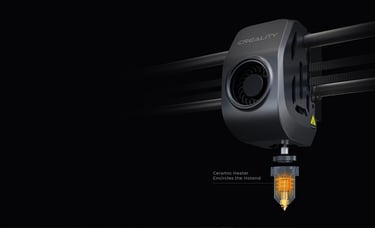

New ceramic heater, encircling the entire hotend. It heats to 200℃ in 40s and melts the filament instantly.
Dual-gear direct extruder, delivering strong extrusion force.
Hotend with a titanium alloy heatbreak and a hardened steel nozzle, working well in up to 300℃.

Get Cool Models On the Fly

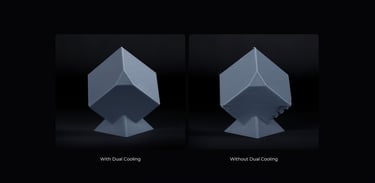

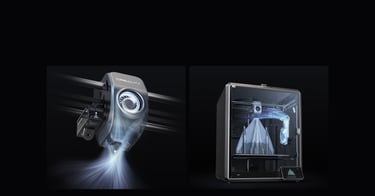

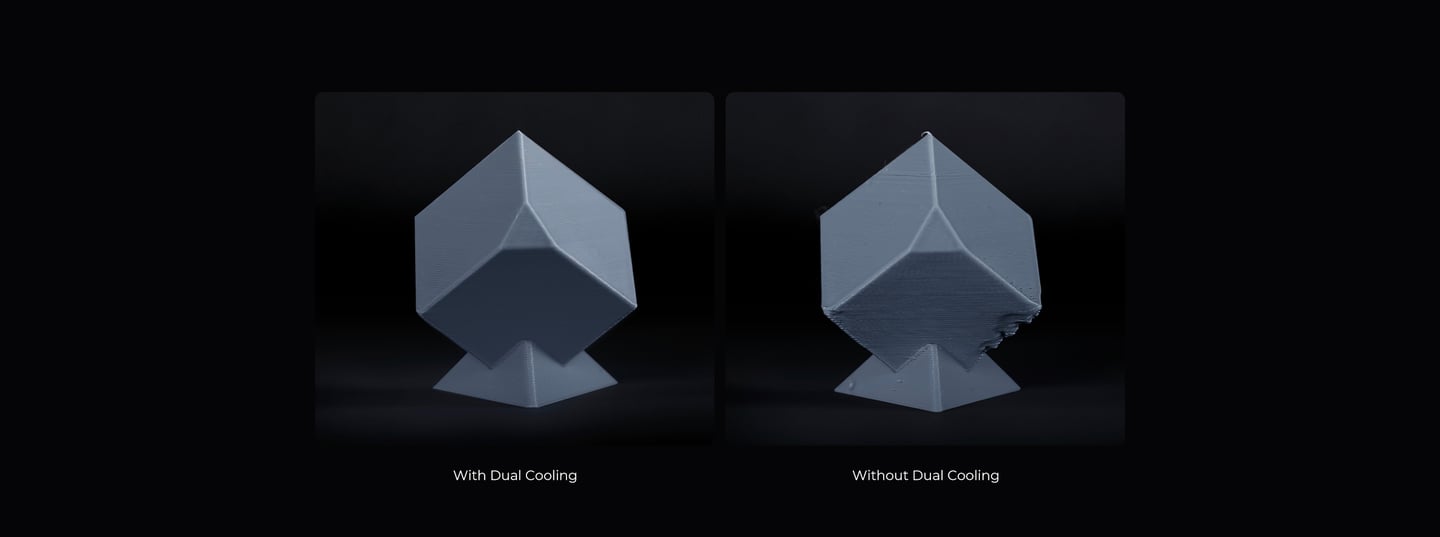

Model Cooling by Dual Fans

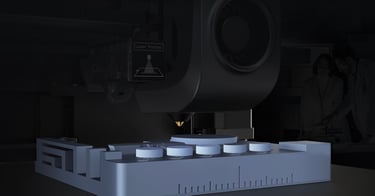

A large fan on the printhead with air ducts cools the model directly.
An 18W auxiliary fan in the build chamber enhances the cooling effect, to

The model hardens before any stringing and warping could happen.
It allows support-free bridges and overhangs.

Print Technology: Fused Deposition Modeling(FDM)

Print Volume: 300x300x300 mm

Machine Dimensions: 432x462x526 mm

Extruder Type: Direct Drive Dual-Gear Extruders

Nozzle Diameter: 0.4mm (0.6, 0.8, 1.0 mm optional)

Max Extruder Temperature: ≤350°C (Recommended temperature ≤320 ℃)

Platform Temperature: ≤110°C

Max Flow: 40mm³/s

Max Print Speed: 500mm/s (Recommend Printing Speed: 200-300mm/s )

Support Software: Creality Print, Cura, PrusaSlicer, Simplify 3D

Display Screen: 4.3-inch Color Touchscreen

Input Voltage: 100/240AC 50/60Hz

Rated Power: 1000W

Firmware: Klipper-based Creality OS

Filament Compatibility:
Common filament: PLA, TPU, PETG;
Engineering filament: PET-CF/GF, HtPA-CF/GF, HtPA-GF25/CF25;
Support filament: S-Mulit, S-HtPA, etc

Creality K1 Max Specs

download brochure
