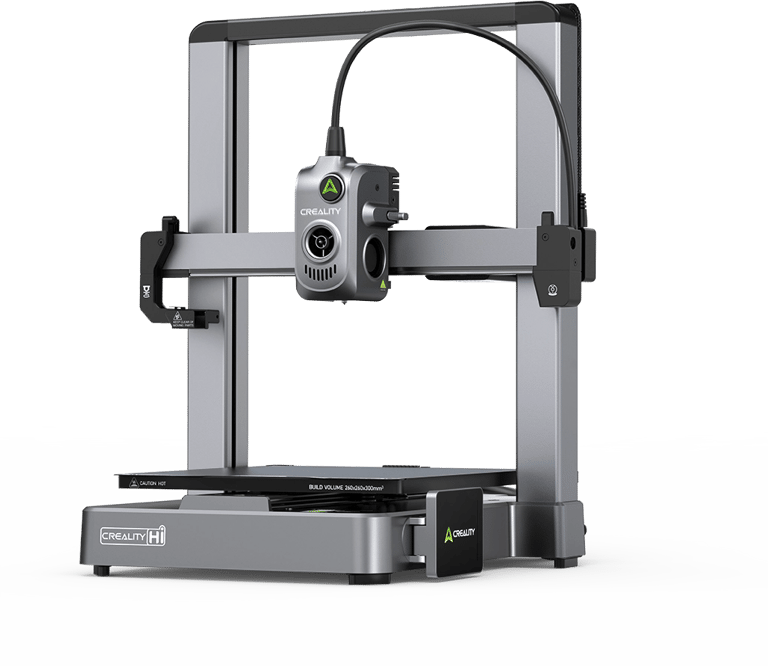

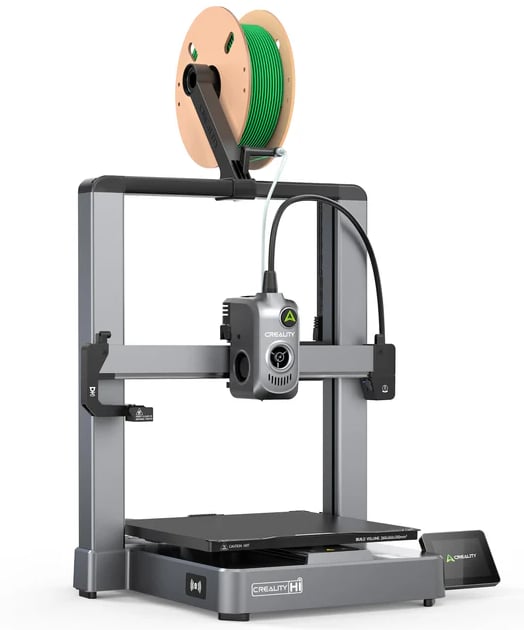

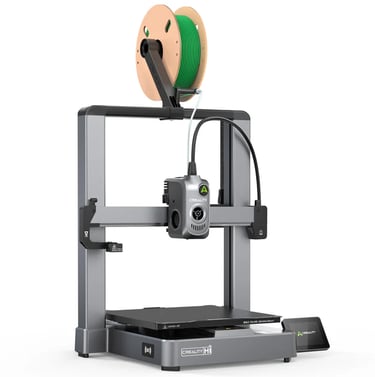

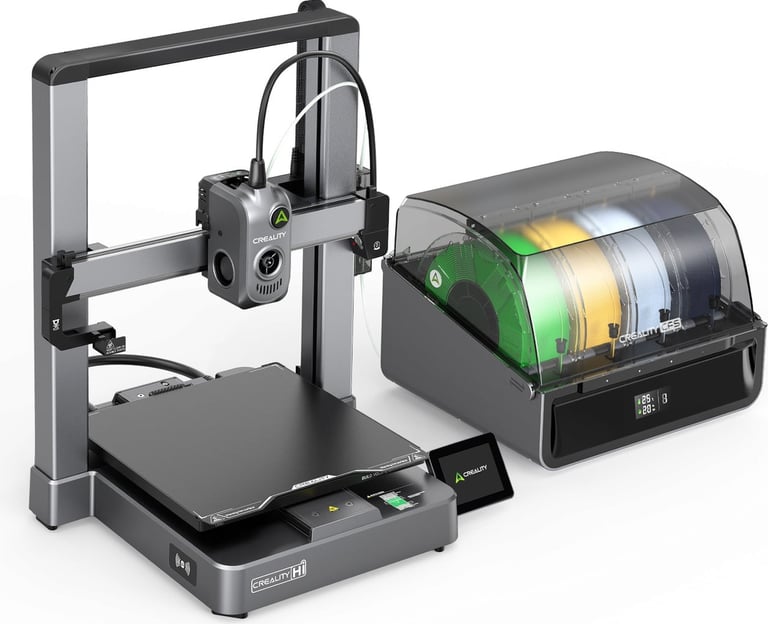

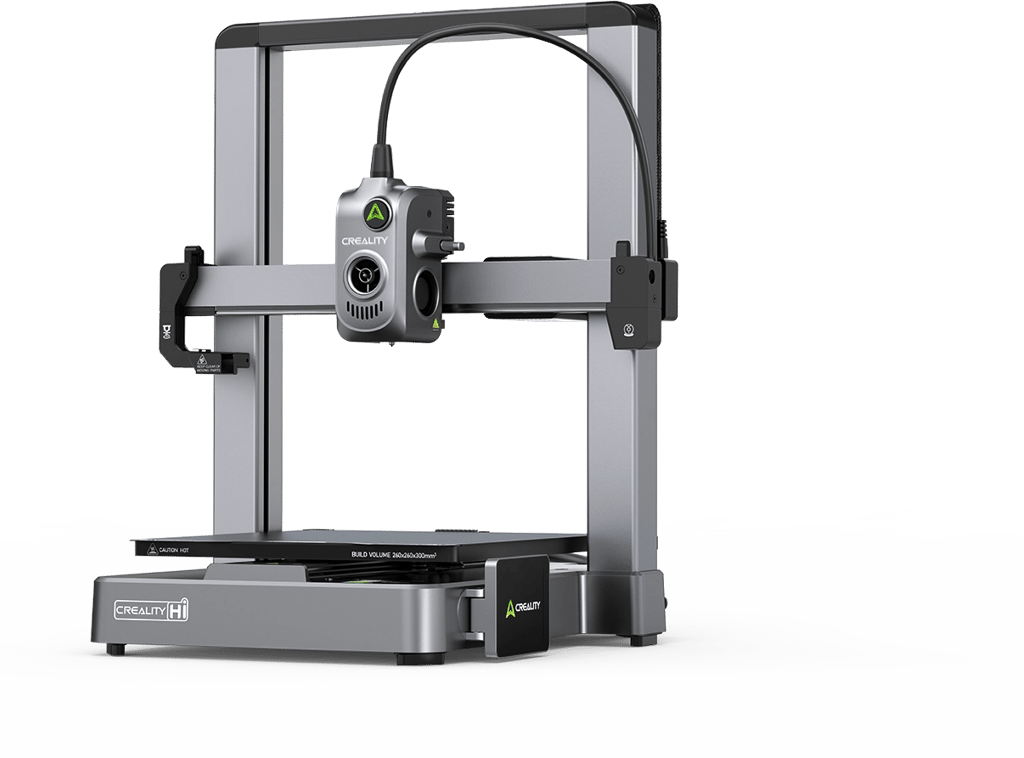

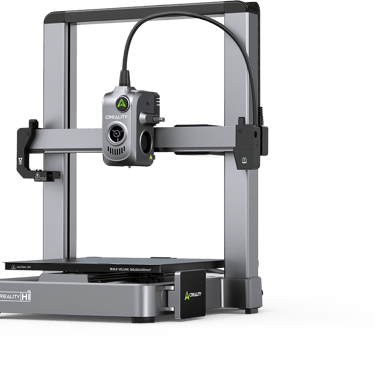

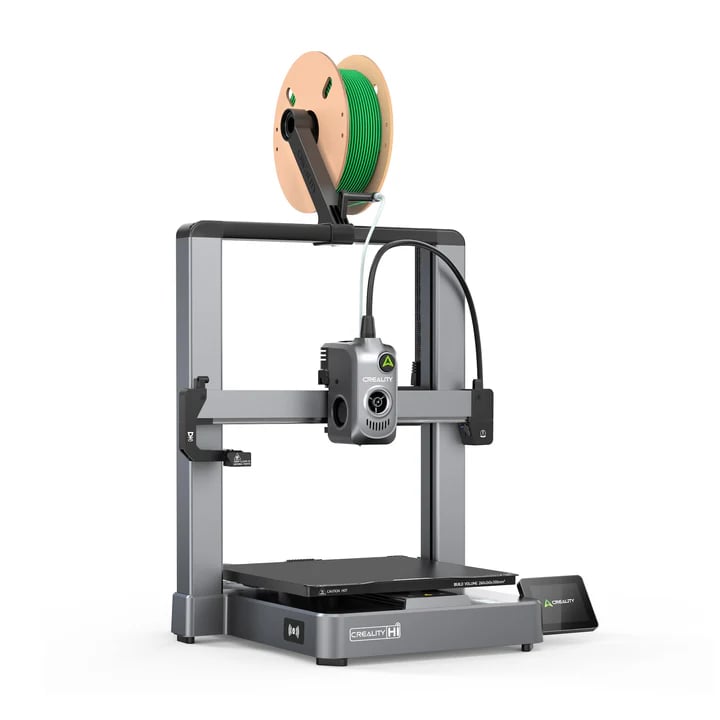

CREALITY Hi
Filament load & unload now gets even easier
with the CFS in play. Simply insert the filament
into the feeding tube, and then give
a few quick touches.
Creality Hi is 95% pre assembled. You can get it going in just 8 minutes after tightening only seven screws and some wiring. It's the most user-friendly bed slinger Creality has ever offered

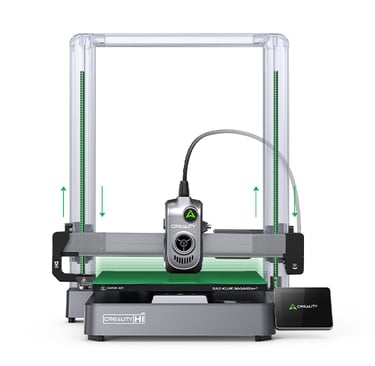

Auto Bed Leveling &
X-axis Tilt Reduction
A good first layer is a nice print half done. Creality Hi,
with a comprehensive and precise auto-leveling system,
grants you the perfect first layer every time.

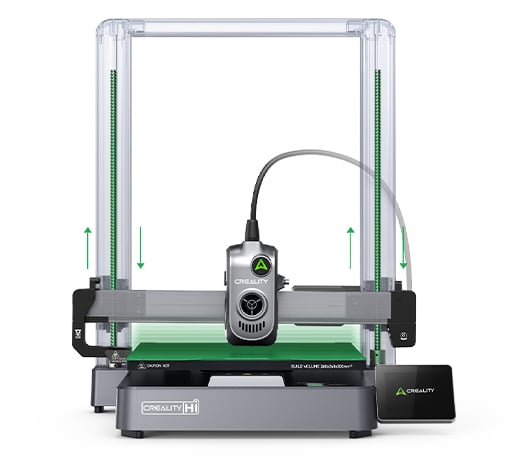

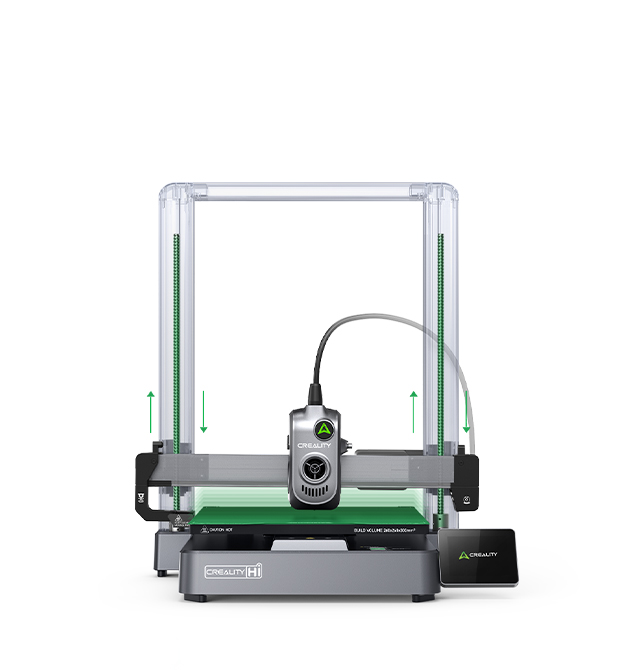

Dual Lead Screws
Two independently motorized lead screws adjust the X-axis to the horizontal position

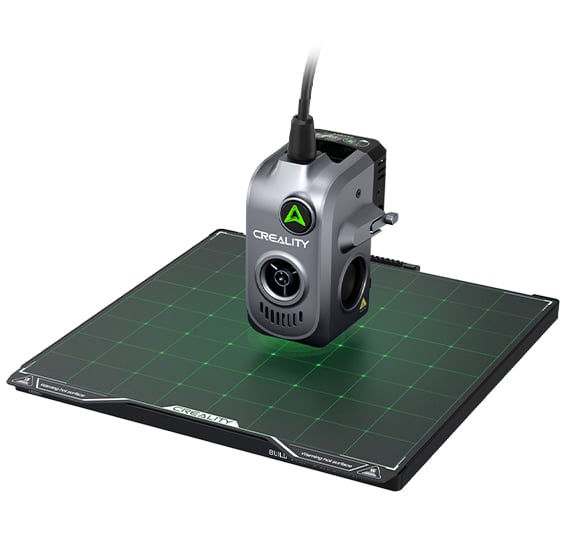

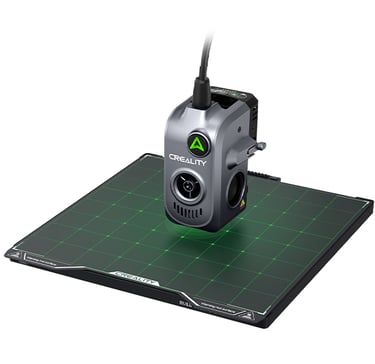

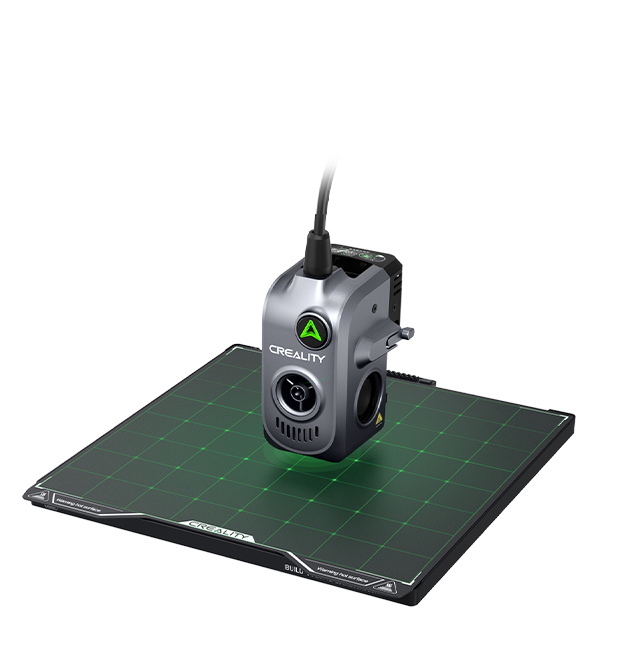

High-sensitivity Sensor


A strain gauge in the toolhead auto-probes the bed for an accurate leveling mesh

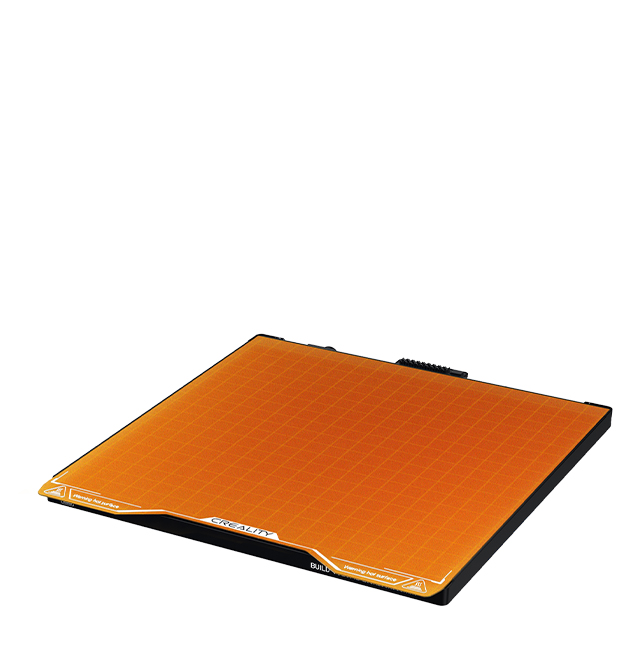

A 100W AC heatbed that can reach 60℃ in 30s*
or 100 ℃ in 90s*, reducing the preparation time
100W Heatbed


Smooth Filament In/Out
by Touch Control
Filament load & unload now gets even easier with the CFS in play. Simply insert the filament into the feeding tube, and then give a few quick touches.

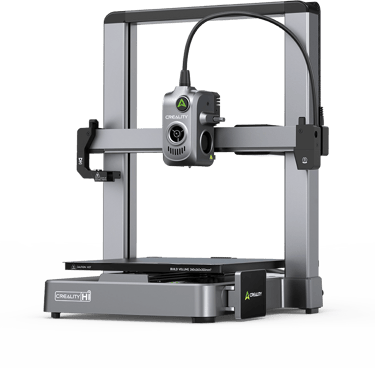

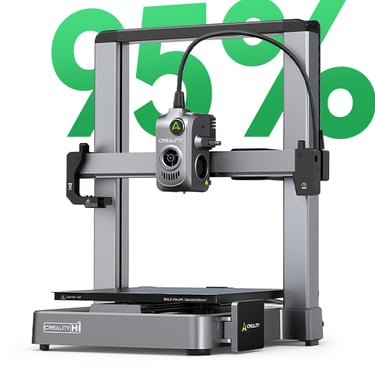

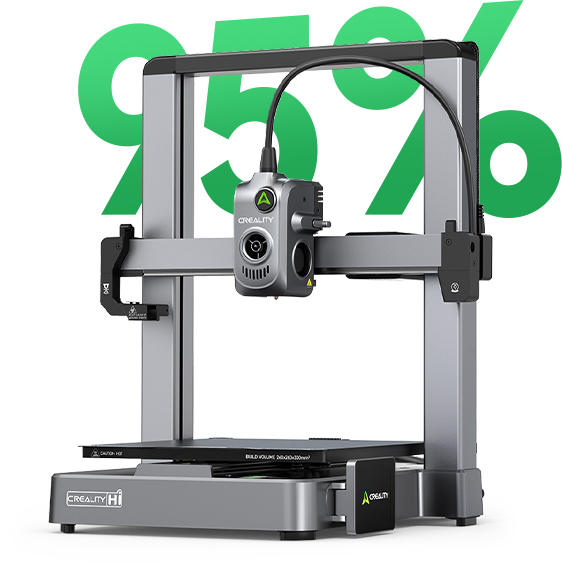

Assembly Gets Even Easier
Creality Hi is 95% pre assembled. You can get it going in just 8 minutes after tightening only seven screws and some wiring. It's the most user-friendly bed slinger Creality has ever offered

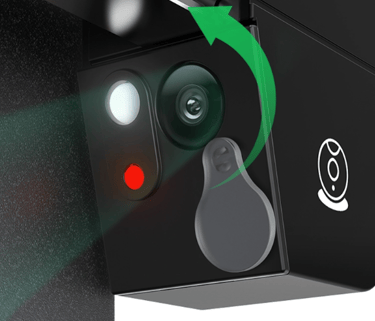

Camera with a Privacy Cap
· Video monitoring of your print jobs
· One tap to share time-lapse video
· Camera cap for privacy protection

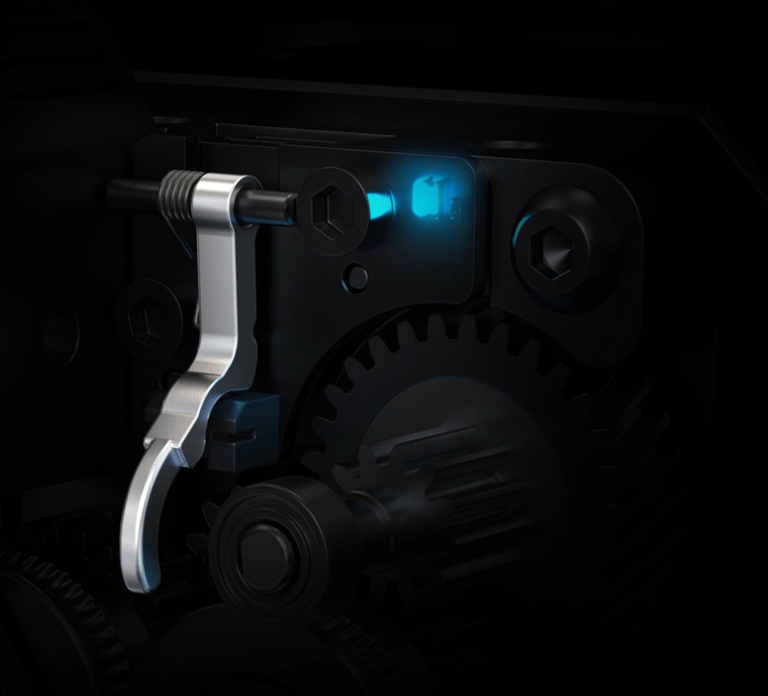

Run-out Sensor in the Extruder
The usage of filament is now monitored more closely and precisely for run-out or breakage.
Filaments can be unloaded or switched (with CFS) with less residual waste.

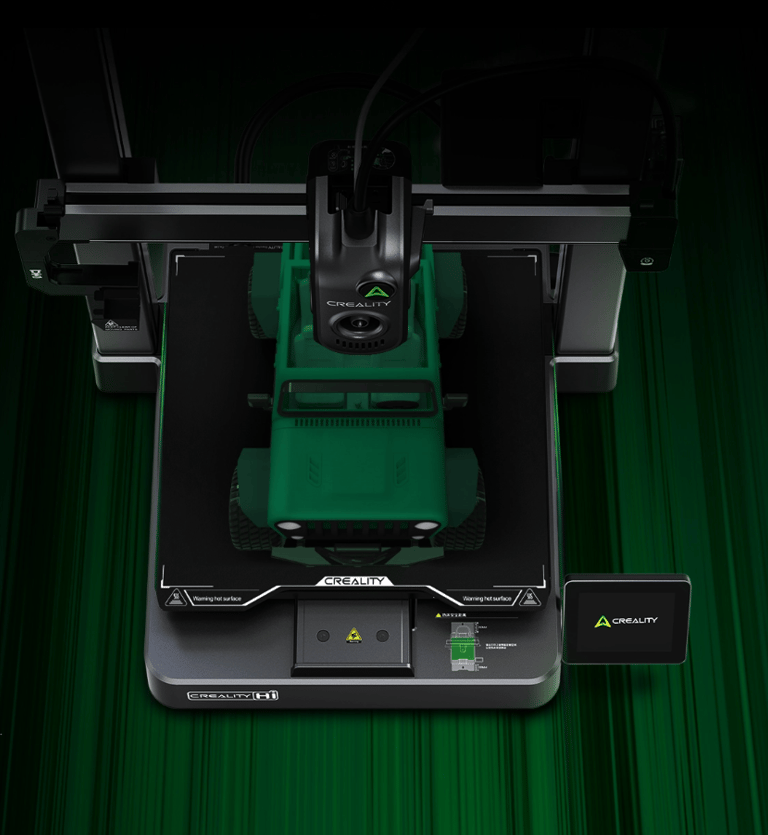

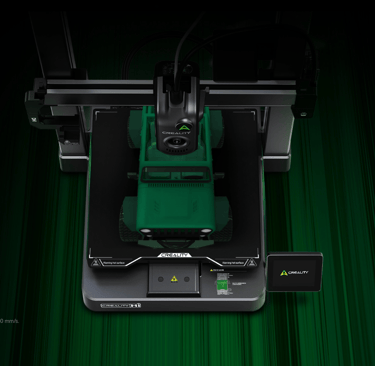

Boosted by FOC Step-servo Motors
The X and Y axis of Creality Hi are driven by step-servo motors with FOC algorithms. Minimal step loss and layer shift. It enables quiet and smooth motion
even at a mind-blowing print speed
500 mm/s*
Max Speed
12000 mm/s²*
Max Acceleration


Printing Technology: Fused Deposition Modeling
Build Volume: 260 x 260 x 300 mm
3D Printer Dimensions: 409 x 392 x 477 mm
Printer Package Dimensions: 650 x 460 x 240 mm
Combo Package Dimensions: 650 x 460 x 560 mm
3D Printer Net Weight: 8.75kg
Combo Net Weight: 13.31 kg
3D Printer Gross Weight: 11.58kg
Combo Gross Weight: 19.14 kg
Printing Speed: 300 mm/s typical speed; 500 mm/s max speed
Acceleration: ≤ 12000 mm/s²
Printing Accuracy: 100+0.1 mm
Layer Height: 0.1-0.35 mm
Extruder: Direct drive extruder
Filament Diameter: 1.75 mm
Nozzle Type: Durable tri-metal nozzle
Nozzle Diameter: 0.4 mm, compatible with 0.6/0.8 mm
Nozzle Temperature: ≤ 300 °C
Heatbed Temperature: 100 °C

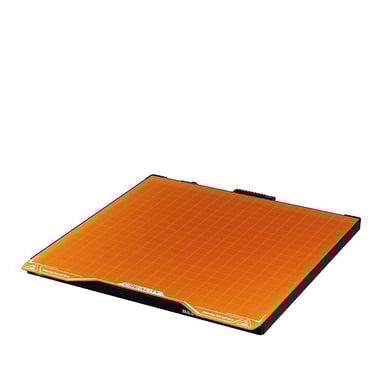

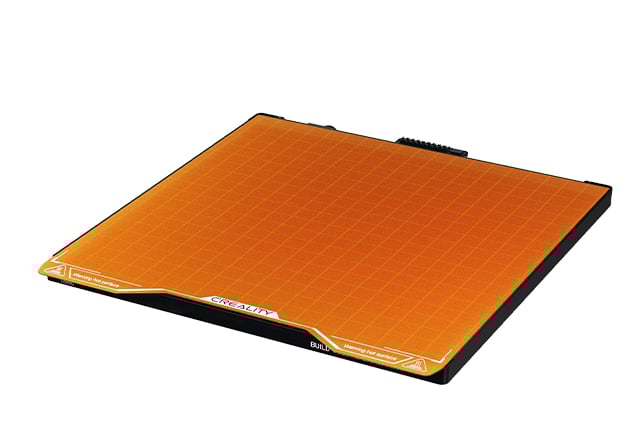

Build Plate: Two-sided epoxy flexible build plate
Leveling Mode: Full-auto leveling
XYZE Motor: Step-servo motor for X/Y axis; step motor for others
File Transfer: USB drive/WiFi
Display Screen: 3.2" color touch screen
Monitoring Camera: Yes
Filament Run-out Sensor: Yes
Auto Filament Relay: Yes (with CFS)
Filament Tangle Detection: Yes
Input Shaping (G-Sensor): Yes
Lighting Kit: Yes
Rated Voltage: AC 100~240V/ 50 Hz
Rated Power: 1150W@220V; 390W@110V
Supported Filaments: Hyper-PLA/PLA/PETG/ABS/PLA-CF
Slicing Software: Creality Print 5.1 and newer versions
Specifications
